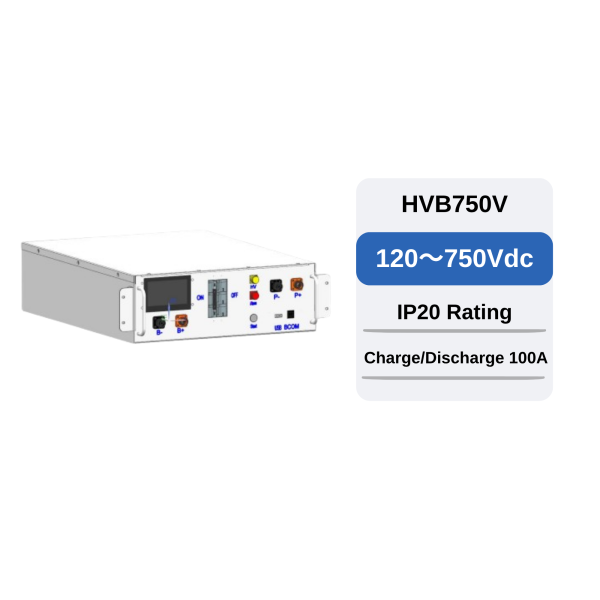

Deye HVB750V/100A

120~750Vdc

Features

Cluster control box: 120~750Vdc operating voltage, supports 3-12 battery modules in series
Support 100A nominal charge & 100A discharge (max. 125A)
Flexible Expansion: up to 12 modules per cluster, max. 61.44 kWh (BOS-G60)

Advanced BMS

Intelligent BMS with multi-layer protection: over-charge, over-discharge, over-current, and over/under-temperature
Automatic charge/discharge management with cell voltage & current balancing across all battery modules
Communication via CAN2.0 / RS485, with local display, status indicators, USB upgrade, and remote upgrade (Deye inverter compatible)

SMART CONTROL AT YOUR FINGERTIPS

Auto-networking: battery modules link via the 110mm communication cable, no manual addressing
Communication: CAN2.0 / RS485 to the inverter, with USB upgrade, optional WiFi upgrade, and remote upgrade (Deye inverter compatible)
Local Display: built-in screen on the control box shows system status
Status Indicator: Yellow LED = battery high voltage power on, Red LED = battery system alarm

Technical Data Specification

Model	HVB750V/100A-EU / HVB750V/100A-US
Operating Voltage	120 ~ 750 Vdc
Nominal Charge/Discharge Current	100 A
Max. Charge/Discharge Current	125 A
DC Input Rating	12 ± 2% V / 4.15 A
Operating Temperature Range	-20°C ~ 65°C
Ingress Protection	IP20
Dimensions (W×D×H)	440 × 570 × 150 mm
Weight	15.5 kg (EU) / 17 kg (US)
Standard Compliance	European or British Standards (EU) / North American Standard (US)
Standard Accessories	120 ohm terminal resistance, 140 mm communication cable, 220 mm power cable, power cable (1.5 m US / 2.1 m EU), power plug
