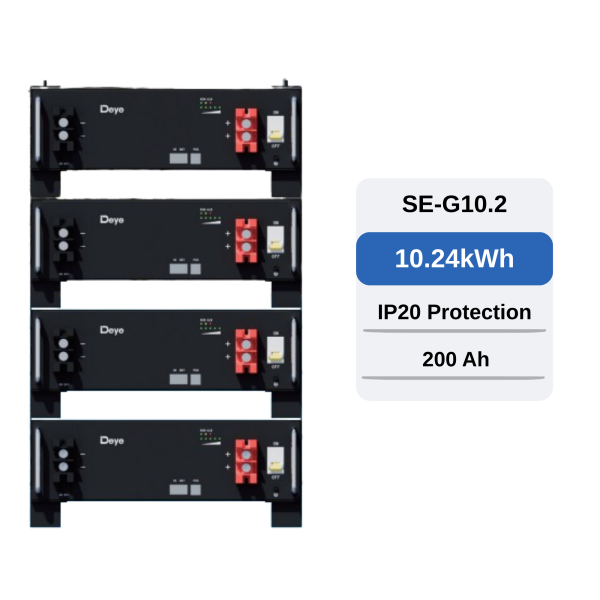

Deye Battery SE-G10.2

Easy Operation & Maintenance

Deye SE-G10.2 (10,24 kWh, 51,2V) mendukung auto networking antar modul baterai, tanpa perlu setting DIP switch
Bisa dipantau dan di-upgrade firmware-nya secara remote
Mendukung aktivasi lewat external power supply, sehingga baterai tidak mengalami suspensi (mati total)
Baterai yang mengalami over-discharge bisa langsung di-recharge, jadi perawatannya mudah

Safer

Deye SE-G10.2 menggunakan baterai LFP (LiFePO₄) yang aman, awet, dan efisien, dengan rating ≥6000 cycle (25°C, 0,2C/0,2C, 80% DoD, 70% EOL)
Dilengkapi built-in circuit breaker sebagai proteksi tambahan
Intelligent BMS memantau dan melindungi baterai secara otomatis, dengan indikator LED status (working, alarming, protecting)
Material ramah lingkungan, tidak beracun, dan modul bebas polusi

Flexible Application

Deye SE-G10.2 mudah di-expand, bisa dipasang paralel hingga maks. 64 unit (total kapasitas hingga 655 kWh). Catatan: maks. 32 unit tanpa external CAN-Box
Cocok untuk aplikasi residensial maupun komersial untuk meningkatkan rasio self-consumption
Tersedia pilihan instalasi wall-mounted, floor-mounted (stacked), atau rack-mounted (kedalaman kabinet ≥600 mm)

Reliable

Deye SE-G10.2 mendukung charge dan discharge 0,5C, dengan arus kontinu maks. 100 A (peak 200 A selama 10 detik)
Rentang suhu operasi yang lebar: charge 0 ~ 55°C, discharge -20°C ~ 55°C
Suhu penyimpanan 0 ~ 35°C, dengan kelembaban relatif hingga 95% dan pemakaian di ketinggian ≤2000 m

Specification Item	Details
Model	Deye SE – G10.2
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Capacity	200 Ah
Nominal Voltage	51.2 V
Operating Voltage Range	44.8 V – 57.6 V
Nominal Energy	10.24 kWh
Cell Configuration	2P16S
Scalability	Up to 64 units in parallel (655 kWh), max. 32 units without external CAN-Box
Max Charge Current	100 A (Continuous), 200 A (Peak for 10 sec)
Max Discharge Current	100 A (Continuous), 200 A (Peak for 10 sec)
Recommended Depth of Discharge	80% DoD
Dimensions (W x D x H)	710 × 540 × 133 mm
Weight	Approximately 85 kg
Master LED Indicator	5 LEDs (SOC indication from 20% to 100%), 3 LEDs (working, alarming, protecting)
Communication Ports	CAN2.0, RS485
IP Rating	IP20
Operating Temperature	Charging: 0 to 55℃; Discharge: -20 to 55℃
Storage Temperature	0 to 35℃
Cycle Life	≥6000 cycles at 25℃ (0.2C charge/discharge, 80% DoD, 70% EOL)
Warranty Period	5 years
Installation Methods	Floor-mounted (stacked), wall-mounted, rack-mounted (cabinet depth ≥600 mm)
