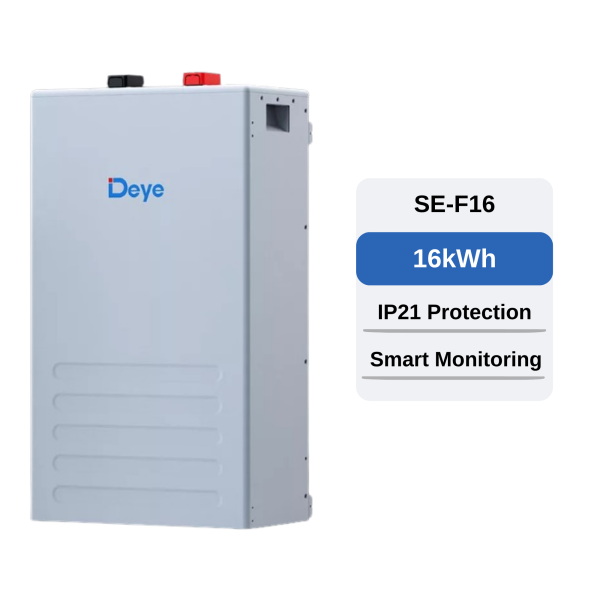

Deye Battery SE-F16

16 kWh

Features

Integrated PACK: reduced line loss, enhanced energy density
Support Max. 160A charge & 230A discharge (peak 280A for 10 sec)
Flexible Expansion: Max. 32 units in parallel

Advanced BMS

Intelligent BMS with active fuse protection
Comprehensive protection for the battery system
Auto-networking between battery modules, local monitoring via Bluetooth APP

SMART CONTROL AT YOUR FINGERTIPS

Auto-networking: battery modules connect automatically
Quick Pairing: connect via Bluetooth APP
Local Monitoring: monitor the battery via Bluetooth APP, no internet needed
Automatic Warning: LED indicator (SOC, working, protecting) & buzzer, plus fault code in the APP

Technical Data Specification

Model	SE-F16
Battery Chemistry	LiFePO₄
Nominal Voltage	51.2 V
Operating Voltage	44.8 V ~ 57.6 V
Capacity	314 Ah
Nominal Energy	16 kWh
Max. Continuous Charge Current	160 A
Max. Continuous Discharge Current	230 A
Peak Charge/Discharge Current	280 A (for 10 seconds)
Recommended Depth of Discharge (DoD)	90%
Dimensions (W×H×D)	400 × 708 × 233 mm
Weight	109 kg
IP Rating	IP21
Communication	CAN2.0, RS485, Bluetooth + APP
