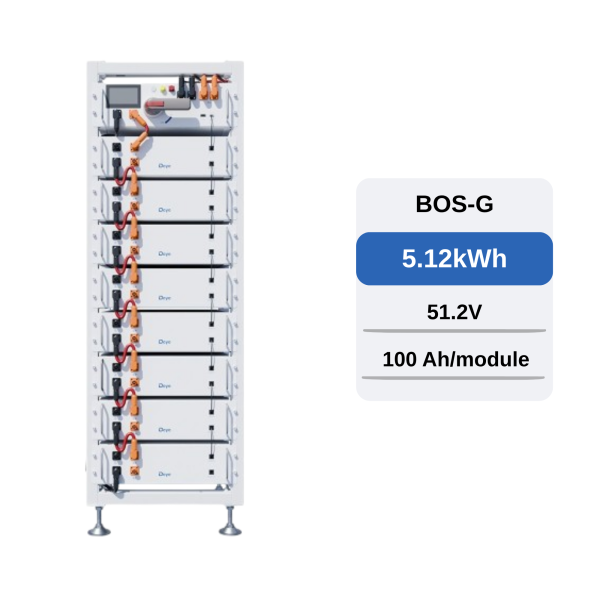

Deye Battery BOS-G PACK 5.1

5.12 kWh

Features

Integrated PACK 5.12 kWh (51.2V / 100Ah): reduced line loss, enhanced energy density
Support 100A nominal charge & 100A discharge (peak 125A discharge)
Flexible Expansion: 4-12 packs in series, max. 16 clusters in parallel

Advanced BMS

Intelligent BMS with auto charge/discharge and cell voltage balancing
Comprehensive protection: over-discharge, over-charge, over-current, and temperature protection
Remote monitoring, management, and upgrades via CAN2.0 / RS485 communication

SMART CONTROL AT YOUR FINGERTIPS

Auto Charge/Discharge: automatic charge/discharge management with cell voltage balancing
Remote Monitoring: monitor, manage, and upgrade remotely via CAN2.0 / RS485 communication
Automatic Warning: LED indicator on the module (Yellow: high voltage power on, Red: battery system alarm)

Technical Data Specification

Model	BOS-G-Pack5.1-D
Battery Chemistry	LiFePO₄
Nominal Voltage	51.2 V
Capacity	100 Ah
Nominal Energy	5.12 kWh
Nominal Charge/Discharge Current	100 A
Peak Discharge Current	125 A
Charge Temperature	0 ~ 55 °C
Discharge Temperature	-20 ~ 55 °C
Storage Temperature	0 ~ 35 °C
Recommended Depth of Discharge (DoD)	90%
Dimensions (W×D×H)	440 × 570 × 133 mm
Weight	45 kg
IP Rating	IP20
Communication	CAN2.0, RS485
