Deye Baterry BOS-B PDU-2

200~1000 Vdc

Features

High-Voltage Control Unit (PDU) for BOS-B battery racks: 200~1000 Vdc operating voltage, 5U standard chassis
Support 168A nominal charge & 168A discharge
Flexible Expansion: 5-15 battery modules in series, max. 16 clusters in parallel per PCS

Advanced BMS

Intelligent BMS with auto charge/discharge and cell voltage balancing
Comprehensive protection: over-discharge, over-charge, over-current, and temperature protection
Remote monitoring, management, and upgrades via CAN / RS485 / TCP communication, plus Bluetooth App and USB upgrade

SMART CONTROL AT YOUR FINGERTIPS

Auto Charge/Discharge: automatic charge/discharge management with cell voltage balancing
Remote Monitoring: monitor, manage, and upgrade remotely via CAN / RS485 / TCP communication, plus Bluetooth App and USB upgrade

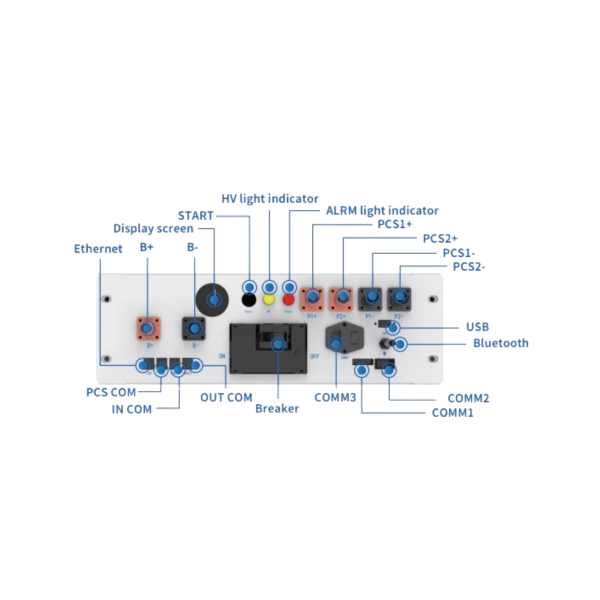

Automatic Warning: LED indicator (Yellow: battery high voltage power on, Red: battery system alarm) and SOC / fault code display on the PDU screen

Technical Data Specification

Model	BOS-B-PDU-2
Operating Voltage	200 ~ 1000 Vdc
Nominal Charge/Discharge Current	168 A
Operating Temperature	-20 ~ 60 °C
IP Rating	IP20
AC Input Rating	220 ± 10% VAC / 2 A
Communication	CAN, RS485, TCP
Dimensions (W×D×H)	788.6 × 526 × 167.2 mm
Weight	32 kg
