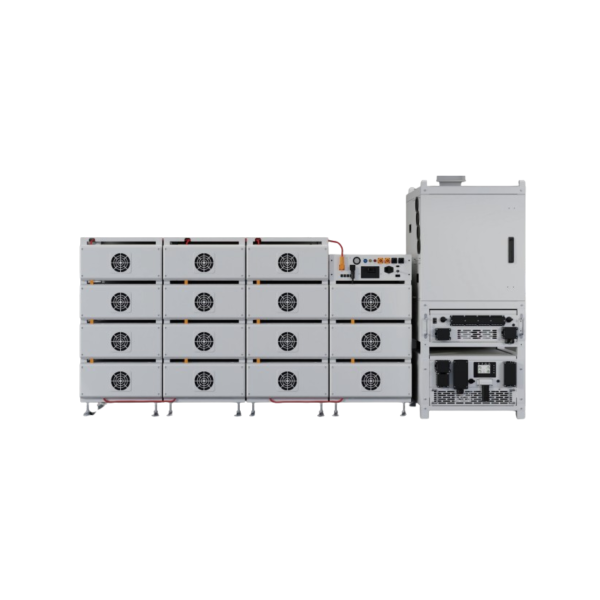

Deye Baterry BOS-B PACK 14.3

14.3 kWh

Features

Integrated PACK 14.3 kWh (51.2V / 280Ah): reduced line loss, enhanced energy density
Support 168A max charge & 168A max discharge
Flexible Expansion: 5-15 packs in series, max. 16 clusters in parallel

Advanced BMS

Intelligent BMS with auto charge/discharge and cell voltage balancing
Comprehensive protection: over-discharge, over-charge, over-current, and temperature protection
Remote monitoring, management, and upgrades via CAN / RS485 / TCP communication, plus Bluetooth App and USB upgrade

SMART CONTROL AT YOUR FINGERTIPS

Auto Charge/Discharge: automatic charge/discharge management with cell voltage balancing
Remote Monitoring: monitor, manage, and upgrade remotely via CAN / RS485 / TCP communication, plus Bluetooth App and USB upgrade
Automatic Warning: LED indicator (Yellow: battery high voltage power on, Red: battery system alarm) and SOC / fault code display

Technical Data Specification

Model	BOS-B-Pack14.3
Battery Chemistry	LiFePO₄
Nominal Voltage	51.2 V
Capacity	280 Ah
Nominal Energy	14.3 kWh
Max Charge/Discharge Current	168 A
Charge Temperature	0 ~ 55 °C
Discharge Temperature	-20 ~ 55 °C
Storage Temperature	0 ~ 35 °C
Recommended Depth of Discharge (DoD)	90%
Dimensions (W×D×H)	795.9 × 526 × 274.2 mm
Weight	123 kg
IP Rating	IP20
Communication	CAN, RS485, TCP
