Deye Baterry BOS-A PDU-2

200~1000 Vdc

Features

High-Voltage Control Unit (PDU) for BOS-A battery racks: 200~1000 Vdc operating voltage, 3U standard chassis
Support 160A nominal charge & 160A discharge
Flexible Expansion: 7-21 battery modules in series, max. 16 clusters in parallel per PCS

Advanced BMS

Intelligent BMS with auto charge/discharge and cell voltage balancing
Comprehensive protection: over-discharge, over-charge, over-current, and temperature protection
Communication via CAN2.0, plus Bluetooth App and USB for BMS upgrade

SMART CONTROL AT YOUR FINGERTIPS

Auto Charge/Discharge: automatic charge/discharge management with cell voltage balancing
Remote Monitoring: communication via CAN2.0, plus Bluetooth App and USB for BMS upgrade

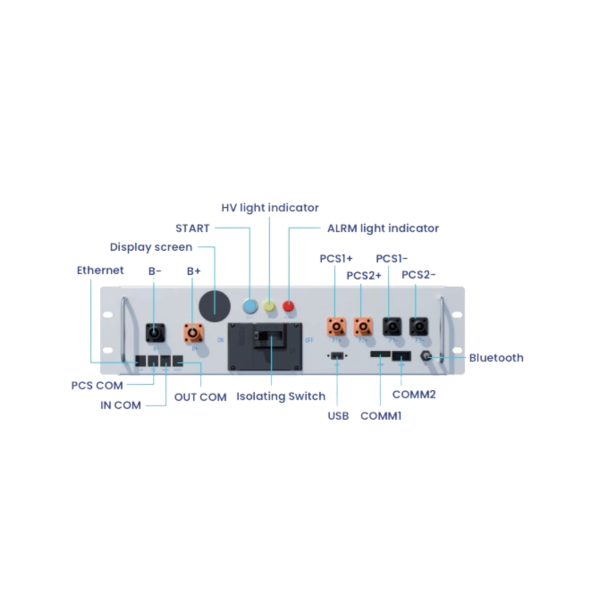

Automatic Warning: LED indicator (Yellow: battery high voltage power on, Red: battery system alarm) and SOC / fault code display on the PDU screen

Technical Data Specification

Model	BOS-A-PDU-2
Operating Voltage	200 ~ 1000 Vdc
Max Charge/Discharge Current	160 A
Operating Temperature	-20 ~ 65 °C
IP Rating	IP20
DC Input Rating	12 ± 2% V / 4.15 A
Communication	CAN2.0
Dimensions (W×D×H)	572 × 632 × 142.2 mm
Weight	21 kg
